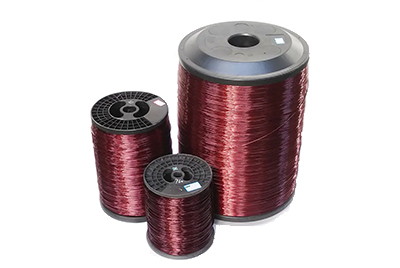

Self-Bonding Wire Enamels (SB)
Self-bonding enameled wire has a three-layer structure, consisting of an aluminum conductor layer, an insulation layer, and a self-adhesive layer.
When wound into coils, it can be bonded and shaped by heating or solvent treatment, making the coils tighter and more compact. It is widely used in the coating of instrument coils, voice coils, speakers, small motors, and sensors.
Purchasing guide for self-bonding enameled wire
- The enamel film of self-bonding enameled wire is tough and uniform, with no damage to the film during winding, and no paint flow or aluminum leakage phenomenon.
- Signi has a 6mm large wire diameter enameling machine, complete specifications, and supports custom sizes for customers.
- Signi is the original factory for self-bonding enameled wire, offering competitive prices and fast delivery.
- Signi's partners include LG, Hyundai, Samsung, Schneider Electric, Panasonic, and others.
Specifications of self-bonding enameled wire
Self-bonding wire diameter: 0.01-6 mm
Bonding layer: Polyamide self-bonding enamel (PAW), Epoxy resin self-bonding enamel (EPW), Aromatic polyamide self-bonding enamel (ArPAW), Polyvinyl butyral self-bonding enamel (PVBAW)
Insulation layer: Polyurethane (PU), Polyester (PET), Polyimide (PEI), Polyamide-imide (PI)
Temperature resistance class: 130 (Class B), 155 (Class F), 180 (Class H), 200 (Class C)
Standards: GB/T 23312, JIS C 3202, IEC 60317, NEMA MW 73-A, MW 35-A
Certifications: Reach, UL, SGS, ROHS, ISO
Colors: Red, green, yellow, black, blue
Packaging: PT25, PT30, PT35, PT60, PT90, PT200, PT270 wooden spools, with a maximum weight of up to 150kg per coil. Conical spools or other spools can be provided, and models can be customized according to customer requirements.
Self-bonding enameled wire bonding layer types
Polyamide Self-bonding Enamel (PAW)
Possesses good stability, suitable for general electrical insulation requirements.
Contact us now
Epoxy Resin Self-bonding Enamel (EPW)
Suitable for applications that require high-temperature resistance and chemical stability.
Contact us nowAromatic Polyamide Self-bonding Enamel (ArPAW)
Aromatic polyamide enamel offers excellent stability, resistance, and insulation.
Contact us now
Polyvinyl Butyral Self-bonding Enamel (PVBAW)
Offers flexibility, cold resistance, and self-lubrication in specific applications.
Contact us nowSelf-adhesive enameled wire performance
| Bonding method | Self-Bonding layer material | Bonding temperature(℃) | Max temperature of applcation(℃) |
|---|---|---|---|
| solvent/heat | Polyvinylbutyral, Polyamide | 100-170 | 90-130 |
| heat | Pplyamide-Epax Aromatic Polyamide | 120-200 | 110-150 |
| Solvent+head | Polyamide-Epoxy | 180-220 | 180 |
Performance of self-adhesive enameled wire insulation layer
| Insulation class | 130 (Class B) | 155 (Class F) | 180(Class H) |
|---|---|---|---|
| Thermal class | 130°C | 155°C | 180°C |
| Cut-through temperature | 200℃ | 200℃ | ≥230℃ |
| Soldering temperature | 2.0s/375℃ | 2.0s/390℃ | 2.0s/400℃ |
Self-adhesive enameled wire packaging requirements
| Diameter (mm) | Spool Type | Minimum Weight (g) | Maximum Weight (g) |
|---|---|---|---|
| ≤0.028 | PL-1 | 200 | 600 |
| 0.03-0.095 | PL-2 | 500 | 2000 |
| 0.10-0.290 | PT-4 | 500 | 5000 |
| ≥0.3 | PT-10 | 1000 | 12000 |
- We can provide wooden spools in sizes PT25, PT30, PT35, PT60, PT90, PT200, PT270, with a maximum weight of up to 150kg per coil. Conical spools or other types of spools can be provided, and models can be customized according to customer requirements.
- The enameled wire is neatly and tightly wound on the spool, with only one wire end per spool, and the label on the wire spool is placed as close to the center of the spool as possible.
- The enameled wire comes with protective devices, and the inner side of the protective device and the outer edge of the wire spool should be smooth.
- Packaging will include information such as model, specifications, net weight of the enameled wire, production date, etc.
Self-adhesive enameled wire application
- Microphones, headphones, speakers, hearing aids.
- Micro motors (zoom motors, flat motors, core motors).
- Electrical products (sensors, watch coils, buzzers), magnetic heads, IC cards.
- TV deflection coils, armatures of wire-wound disk-type micro motors.
Advantages of self-adhesive enameled wire
- The self-adhesive layer of the self-bonding enameled wire has excellent adhesion, ensuring a tighter and more compact coil, reducing its volume.
- Self-bonding enameled wire easily forms coils with complex or special shapes, simplifying the coil forming process.
- It reduces the manual winding workload for workers, thereby improving efficiency.
- The self-adhesive layer of the self-bonding enameled wire provides good sealing, enhancing the durability of the coil.
- It exhibits excellent electrical insulation performance, effectively protecting the conductor.
- The self-bonding enameled wire has outstanding heat resistance, maintaining stable performance in high-temperature environments.
- Suitable for various applications requiring coils, such as motors, appliances, transformers, sensors, electronic components, etc.
